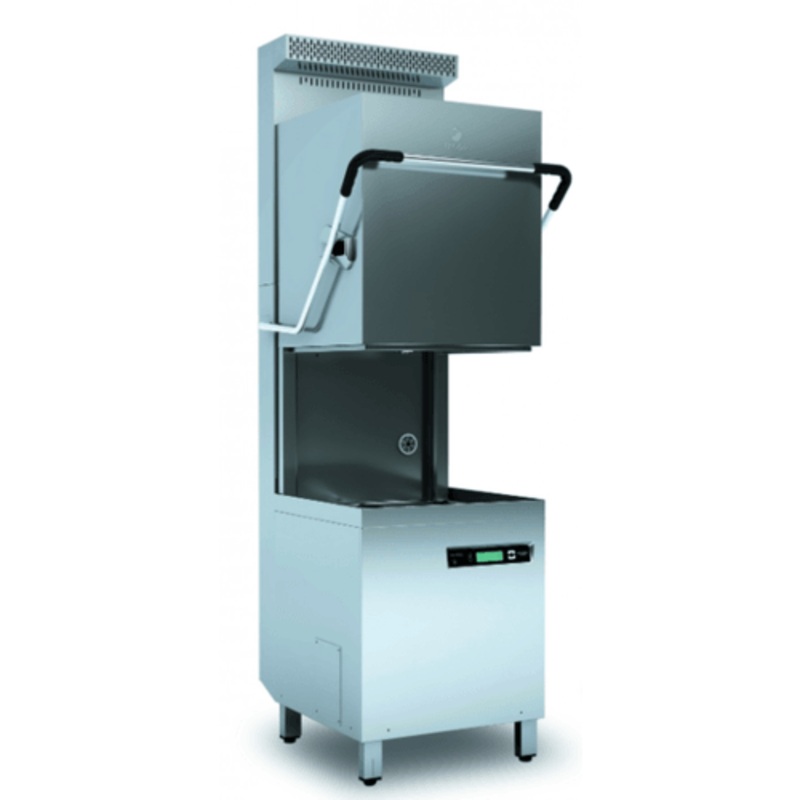

Fagor EVO-ADVANCE pass-through dishwasher with drain pump, detergent and rinse dispenser and HRS AD-125HRS

HIGH TECHNOLOGY WITHIN EVERYONE’S REACH.
For those who believe that technology and simplicity can go hand-in-hand, the E-VO CONCEPT has arrived.Versions

• Hood type dishwasher – EVO Generation – Advance range.
• Hourly production: 65 baskets/hour – 1170 dishes/hour.
• Clearance (max ware height): 440 mm.
• Wash cycles: 55″- 90″ – 120″.
• GLASS cycle: special program for washing glassware, based on the
• specifications of hygiene and safety standard DIN 10511. Cycle of 90
• seconds, with temperatures: 60 C (wash) and 65 C (rinse).
• HRS: version with energy recuperator. HRS collects and condenses the
• steam exhausted by the machine after a full cleaning cycle, and heats up the
• input water. Power: 30 W.
• Made of stainless steel. Includes double skin
• insulated hood, external, front and side panels.
• Full double skin body and hood to isolate machines noise from the
• environment.
• Counterbalanced hood.
• Double rotating wash and rinse systems made of stainless steel, above and
• below.
• Tray filters on the tank, made of AISI-304 stainless steel.
• Two wash pumps, 600 W each.
• Rinsing pump: 260 W. Air break system.
• Drain pump: 70 W. Drainage cycle.
• Tank with 1.8 kW heating element.
• Tank capacity: 28 litres.
• Boiler with multipower heating elements: 3 / 4,5 / 6 / 9 kW.
• Boiler capacity: 9 litres.
• Water consumption: 2.4 litres/rinse.
• Thermostatic temperature control: washing at 60C and rinsing at 90C.
• Thermo stop system that guarantees minimum rinsing temperature of 85C.
• Safety thermostats.
• Built-in automatic rinse dispenser and detergent doser.
• Safety magnetic switch for hood opening.
• Adjustable legs.
• Water protection rating: IPX5

Total power: adjustable: 4,2 12,0 kW.
Dimensions: 658 x 756 x 1540 mm.
Height with HRS recuperator: 2.200 mm.
Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 8 cutlery containers
